Evaporator Sensor

EVAPORATOR SENSOR

STH Branded Evaporator thermistor Sensor is engineered typically mounted on or near the evaporator coil to measure surface or air temperature, allowing the control system to regulate cooling performance. Its specifically Designed to Prevent evaporator coil freezing and thus Improve energy efficiency and system reliability in in HVAC, refrigeration, and automotive AC systems. Our group of professionals check and examine our premium line of STTS on different required parameters. We offer Evaporator Sensors at nominal prices to make a long-term relationship with our esteemed customers.

Applications

Private Automobile HVAC Sensing

Passenger Automobile HVAC Sensing

Commercial Automobile HVAC Sensing

OPTIONS AVAILBLE UPON REQUEST

Encapsulation types: epoxy coated, glass encapsulated bead, metal housing (immersion sensors), chip version.

Lead types: insulated wire leads, bare leads,PTFE, silicone, high‑temp lead wires.

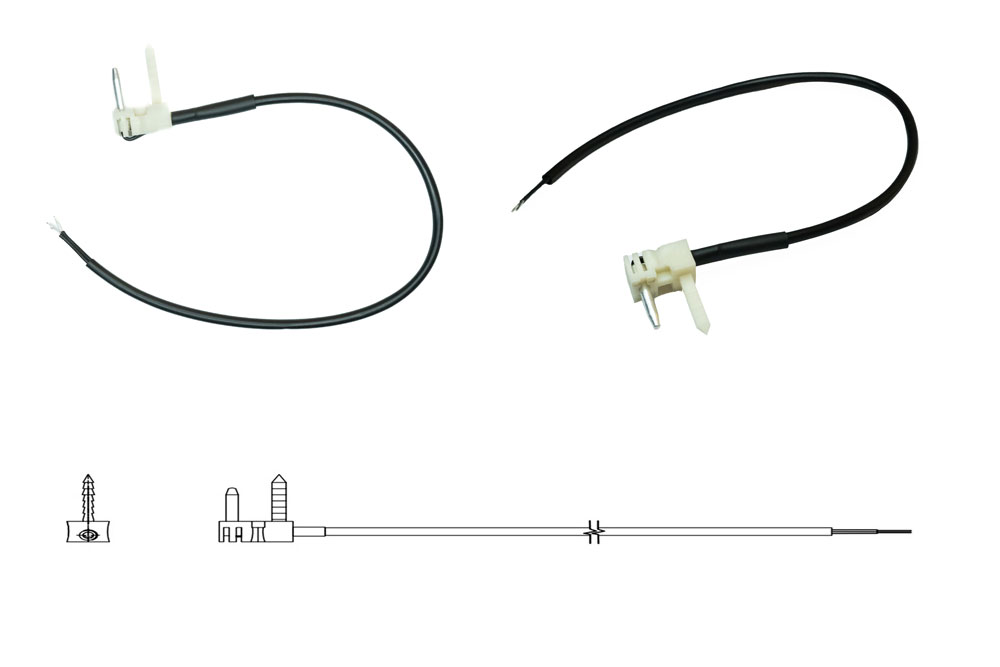

Probe format / mounting style — Brass ‐tube probe clipped to the evaporator coil, or a wire‑lead sensor mounted near the surface, or even flush mount in the airflow.

Temperature range : — make sure the sensor covers the lowest and highest expected temperatures (including extremes like deep‑freeze or defrost) with margin.

Tolerance classes: ±1%, ±3% on Resistance Value and ±1% or ±2% on Beta Value depending on product cost/accuracy.

Lead wire available options: insulated wire leads, bare leads,PTFE, silicone, high‑temp lead wires Lead length, cable gauge, connector type can be customised

RT CHARACTERISTICS (RESISTANCE & BETA VALUES)

Resistance At 25°C (Ω)		Beta Value (25/85) (K)
2000		3540
2057		3540
2800		3900
3000		3977
4700		3977
5000		3977
10000		3977

Resistance At 25°C (Ω)	Beta Value (25/85) (K)
20000	4000
30000	4050
47000	4100
49300	3960
50000	4100
100000	4400
170000	4250

* Customization can be possible
